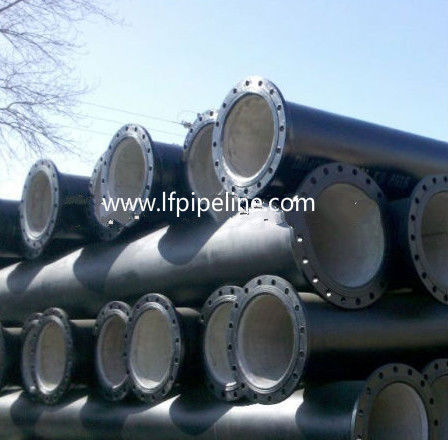

ISO2531/EN545/EN598 연철관은 K10-Class Class40을 K9-Class
1.입식된 것 : ISO2531/EN545/EN598, K9-Class/K10-Class/Class40
2. 인터페이스 타입 : T-타입, k-형, N1 타입, 에스형
| DN | 외부 직경 | 벽 두께 | ||
| [밀리미터 (안에)] | [밀리미터 (안에)] | |||
| 클래스 40 | K9 | K10 | ||
| 40 | 56 (2.205) | 4.8 (0.189) 4.8 (0.189) | 6.0 (0.236) 6.0 (0.236) | 6.0 (0.236) 6.0 (0.236) |
| 50 | 66 (2.598) | 4.8 (0.189) 4.8 (0.189) | 6.0 (0.236) 6.0 (0.236) | 6.0 (0.236) 6.0 (0.236) |
| 60 | 77 (3.031) | 4.8 (0.189) 4.8 (0.189) | 6.0 (0.236) 6.0 (0.236) | 6.0 (0.236) 6.0 (0.236) |
| 65 | 82 (3.228) | 4.8 (0.189) 4.8 (0.189) | 6.0 (0.236) 6.0 (0.236) | 6.0 (0.236) 6.0 (0.236) |
| 80 | 98 (3.858) | 4.8 (0.189) 4.8 (0.189) | 6.0 (0.236) 6.0 (0.236) | 6.0 (0.236) 6.0 (0.236) |
| 100 | 118 (4.646) | 4.8 (0.189) 4.8 (0.189) | 6.0 (0.236) 6.0 (0.236) | 6.0 (0.236) 6.0 (0.236) |
| 125 | 144 (5.669) | 4.8 (0.189) 4.8 (0.189) | 6.0 (0.236) 6.0 (0.236) | 6.0 (0.236) 6.0 (0.236) |
| 150 | 170 (6.693) | 5.0 (0.197) 5.0 (0.197) | 6.0 (0.236) 6.0 (0.236) | 6.5 (0.256) 6.5 (0.256) |
| 200 | 222 (8.740) | 5.4 (0.213) 5.4 (0.213) | 6.3 (0.248) 6.3 (0.248) | 7.0 (0.276) 7.0 (0.276) |
| 250 | 274 (10.787) | 5.8 (0.228) 5.8 (0.228) | 6.8 (0.268) 6.8 (0.268) | 7.5 (0.295) 7.5 (0.295) |
| 300 | 326 (12.835) | 6.2 (0.244) 6.2 (0.244) | 7.2 (0.283) 7.2 (0.283) | 8.0 (0.315) 8.0 (0.315) |
| 350 | 378 (14.882) | 7.0 (0.276) 7.0 (0.276) | 7.7 (0.303) 7.7 (0.303) | 8.5 (0.335) 8.5 (0.335) |
| 400 | 429 (16.890) | 7.8 (0.307) 7.8 (0.307) | 8.1 (0.319) 8.1 (0.319) | 9.0 (0.354) 9.0 (0.354) |
| 450 | 480 (18.898) | - | 8.6 (0.339) 8.6 (0.339) | 9.5 (0.374) 9.5 (0.374) |
| 500 | 532 (20.945) | - | 9.0 (0.354) 9.0 (0.354) | 10.0 (0.394) 10.0 (0.394) |
| 600 | 635 (25.000) | - | 9.9 (0.390) 9.9 (0.390) | 11.1 (0.437) 11.1 (0.437) |
| 700 | 738 (29.055) | - | 10.9 (0.429) 10.9 (0.429) | 12.0 (0.472) 12.0 (0.472) |
| 800 | 842 (33.150) | - | 11.7 (0.461) 11.7 (0.461) | 13.0 (0.512) 13.0 (0.512) |
| 900 | 945 (37.205) | - | 12.9 (0.508) 12.9 (0.508) | 14.1 (0.555) 14.1 (0.555) |
| 1000 | 1,048 (41.260) | - | 13.5 (0.531) 13.5 (0.531) | 15.0 (0.591) 15.0 (0.591) |
| 1100 | 1,152 (45.354) | - | 14.4 (0.567) 14.4 (0.567) | 16.0 (0.630) 16.0 (0.630) |
| 1200 | 1,255 (49.409) | - | 15.3 (0.602) 15.3 (0.602) | 17.0 (0.669) 17.0 (0.669) |
| 1400 | 1,462 (57.559) | - | 17.1 (0.673) 17.1 (0.673) | 19.0 (0.748) 19.0 (0.748) |
| 1500 | 1,565 (61.614) | - | 18.0 (0.709) 18.0 (0.709) | 20.0 (0.787) |
| 1600 | 1,668 (65.669) | - | 18.9 (0.744) 18.9 (0.744) | 51.0 (2.008) |
| 1800 | 1,875 (73.819) | - | 20.7 (0.815) | 23.0 (0.906) |
| 2000 | 2,082 (81.969) | - | 22.5 (0.886) | 25.0 (0.984) |
